Did you know in Revit that you can place a Section and then see that building, in section, in a true 3D view that directly relates to that section mark?

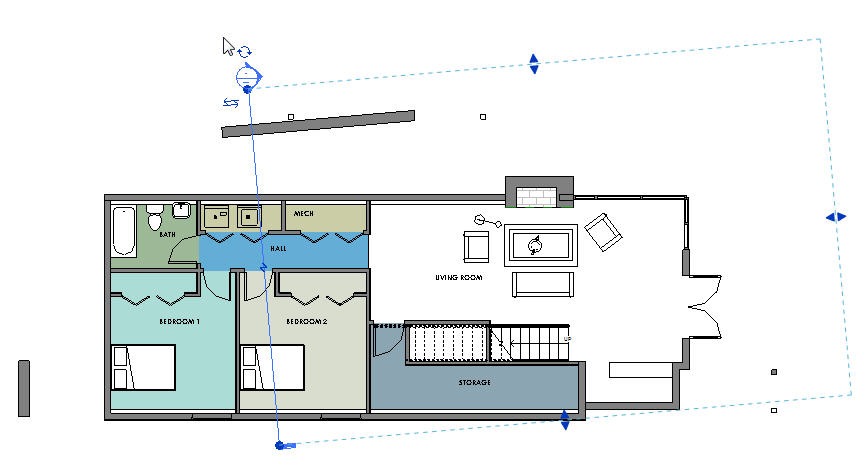

First, place a section:

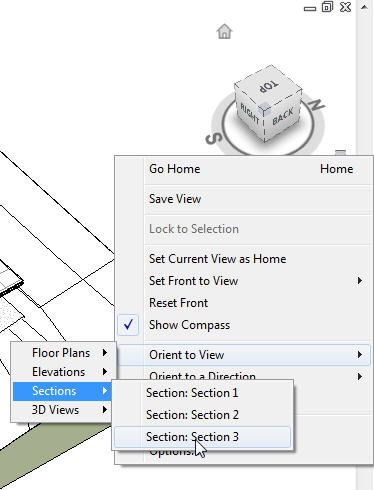

Next, go to a 3D view and hover over the View Cube. Click the down arrow that shows up next to it. Go to Orient to View – Sections – then select the section you created.

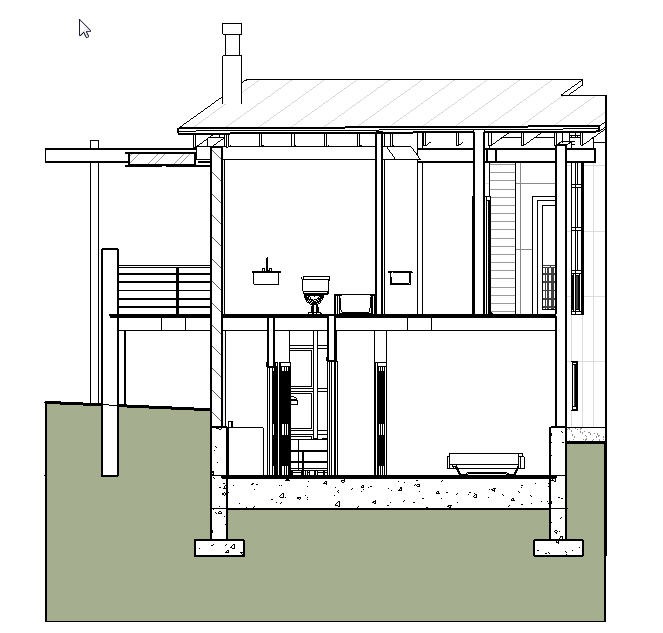

This will create a true, 3D section that is in the exact location of your section mark. It can be rotated, spun, etc just like any other 3D view!
